1 pcs motorized ball valve 3/4 NPT, DN20, 2 way 12VDC CR04, stainless steel electrical valve

1 pcs motorized ball valve 3/4 NPT, DN20, 2 way 12VDC CR04, stainless steel electrical valve
  • Продавецwww.prada-handbags-sale.us
  • Список ценUS $24.05piece
  • Продажная ценаUS $24.05piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,4 (508)

Oписание продукта

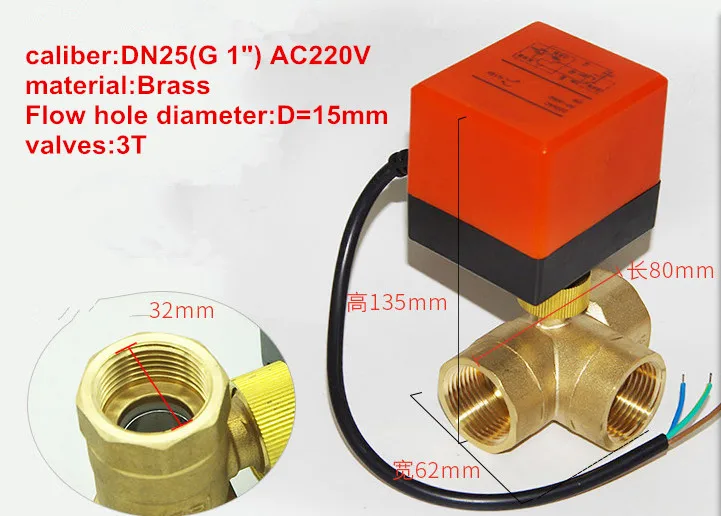

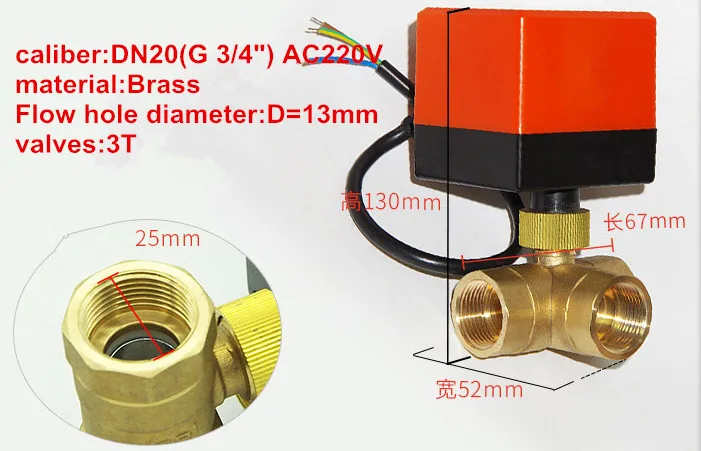

DN15(1/2") / DN20(G 3/4") / DN25(G 1")

DN15 DN20 DN25 DN32 AC220V DC12V DC24V 3 way electric brass ball valve Cold&hot water vapor/heat gas motorized ball valve



Technical Parameters:

Drive power: 220VAC, AC12V, AC24V

Power: 5 - 6W

Action time: 15S

Medium: cold / hot water

Medium temperature: 2 ℃ -90 ℃

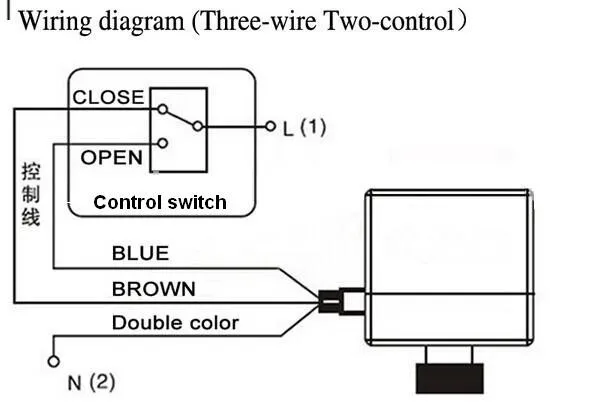

Control: three-wire two control




product features
■ synchronous motor, two angular stroke limit switch, after the power to maintain the valve state;
■ low mute, running noise less than 40dB;
■ Ball valve and actuator for nut connection Installation, quick disassembly
■ brass forging, character
■ not easy to plug, close the pressure difference, close tightly not leak
■ long life, the switch up to 100000 times



_



Application scope

This valve widely used in heating, air conditioning systems, floor heating systems, solar evacuation systems and other systems.



Operating principal/working principle:

This Valve used for heating systems and air-conditioning fan coil systems on-off controlled by the valve and actuator components, actuators driven by a rotary valve ball 90 percent of movement. Synchronous motor driven actuator, Built-in limit contacts, enabling the valve in the fully open or fully closed off, the action and stability.





QQ20170605221537_



QQ20170605221621_




QQ20170605221647_
