Oписание продукта

Note:

175.99USD do not includethe controller and power supply

205.99USD includestotal set

Description:

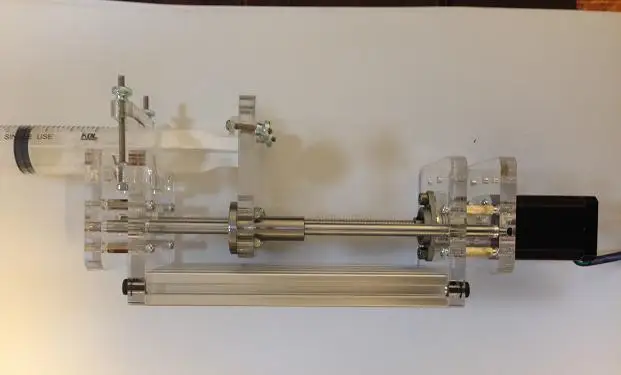

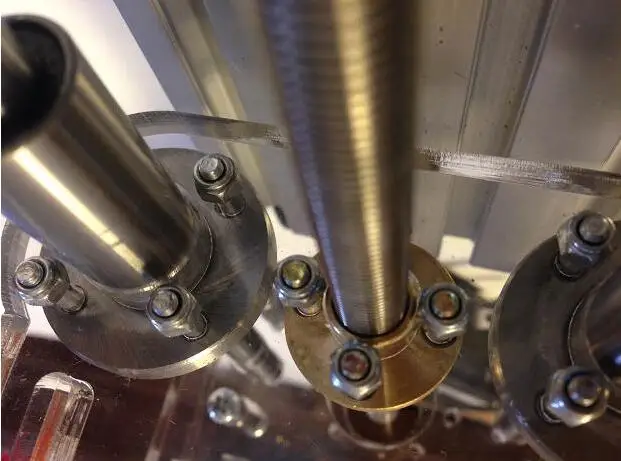

  1. 8mm diameter stainless steel round guide rail, extended flanged bearing, screw rod with T8 lead 1mm screw, copper screw nut

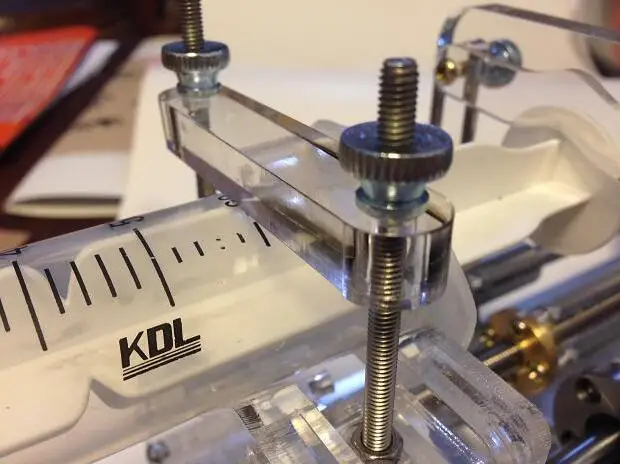

  2. The clamping is fixed by a clamp, and the M4 hand-tightening nut is fastened;

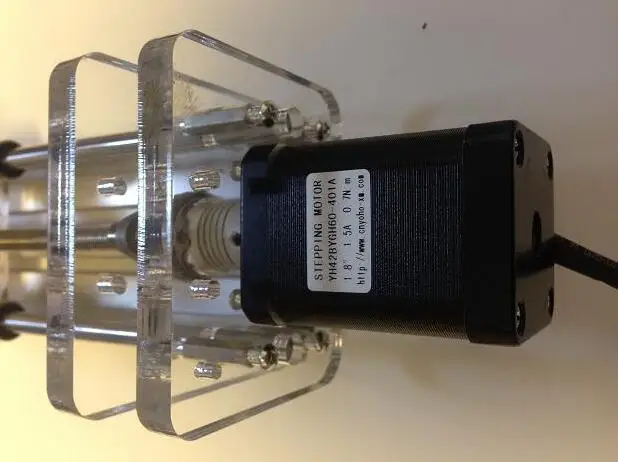

  3. The motor is a 42-step motor with a large torque motor and a single-turn setting of 400 steps.

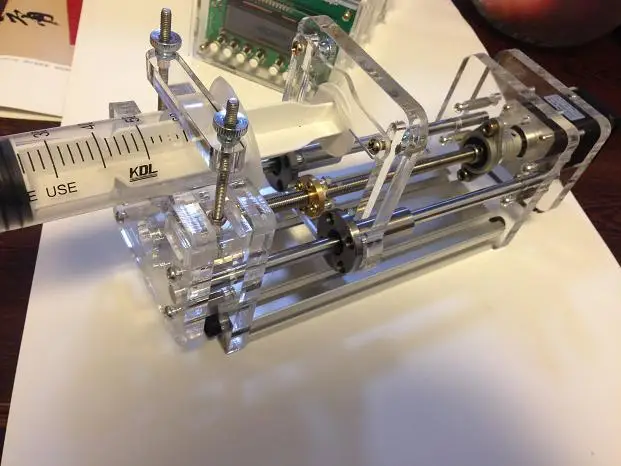

  4. Piston mounts are adjustable up and down for use with syringes of different sizes

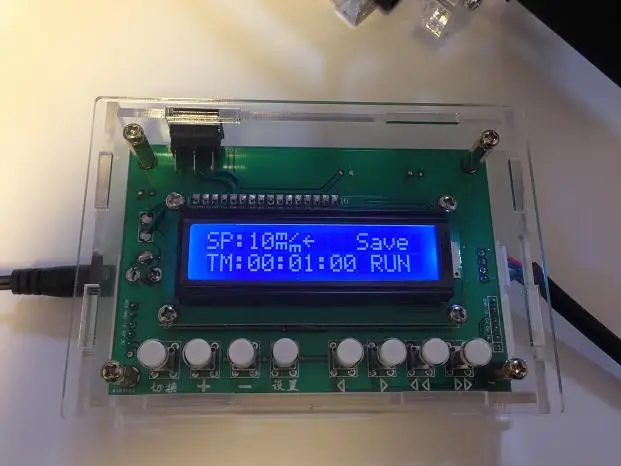

  5. The controller uses 1602 liquid crystal display, 4 buttons can set speed, working time, working mode, and the other 4 buttons are used to control the machine, respectively, fixed speed and high speed
  6. The TTL level RS-232 interface is reserved on the board, and the control button also has an external interface, which can be used for connecting an external switch, a foot switch, etc.

Parameter:

  1. Clampable syringe: 1ml ~ 150ml (less than 42mm in diameter)
  2. Time setting: 1 second to 17 hours;
  3. Working mode: manual control, timed work, communication control
  4. Equipment working power: 12V2A
  5. Adapter power supply: 100 ~ 240V / 50Hz
  6. Slider stroke: 140mm
  7. Single circle lead: 1mm
  8. Size: 290mm*130mm*130mm
  9. Weight: 1.5kg

1234567

Include:

1 x set of Syringe pump(as your choose)
